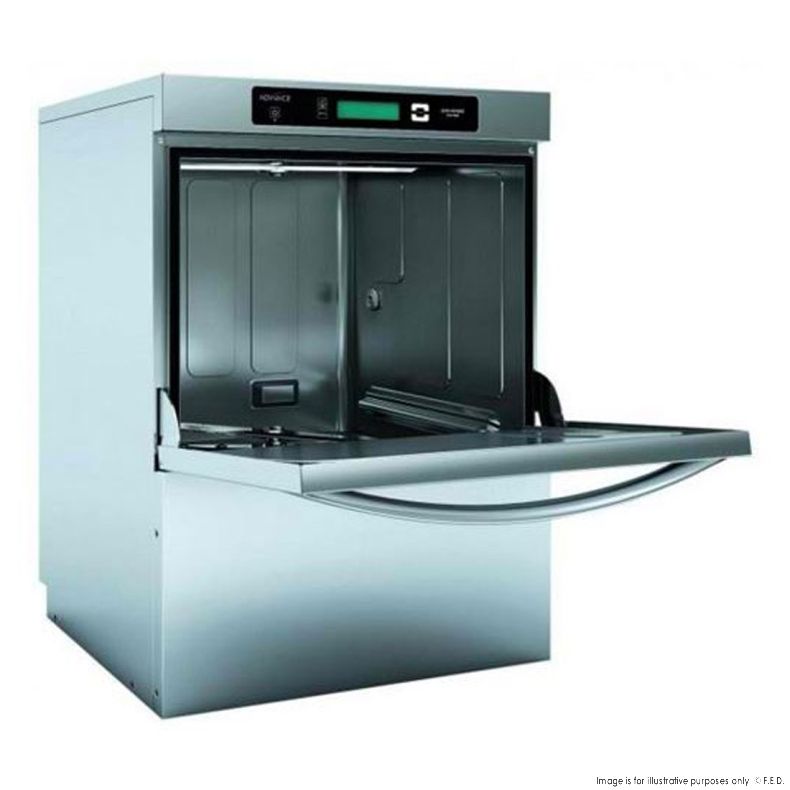

Fagor Evo-Concept Undercounter Dishwasher With Drain Pump CO-502BDD

The AISI-304 stainless steel E-VO CONCEPT front-loading and under-counter dishwasher feature a recessed wash tank, recessed basket guides, tray filter, wash and rinse arms, and a three-position robust compensated door. It also has a double wall door and body (EFFI-SILENT).  2.4 liters of water are continuously used for the rinse at a mains pressure of 2 bar per cycle. With a single, strong 0.6 kW pump and stainless steel wash arms, the newly optimized hydraulic EFFI-WASH system ensures an excellent, effective, and efficient wash with the ideal Sinner circle balance. Additionally, it features an integrated rinse aid dispenser, drainage pump (B), and detergent dispenser (DD) that can be installed at the factory or purchased as a kit. Its adjustable feet allow it to be leveled in accordance with the requirements of the establishment. Magnetic sensor for open doors. It has an electromechanical control panel that is easy to use.

Product features

• Front loading dishwasher - EVO Generation - Concept range.
• Hourly production: 40 baskets/hour - 720 dishes/hour.
• Clearance (max ware height): 380 mm.
• Valid for GN-1/1 trays.
• Electronic control.
• Wash cycles: 90"-180".
• Made of stainless steel.
• Full Double skin body to isolate the machine’s noise from the environment. The door has double skin with special pressed isolation material and stamped finishing to improve noise isolation and to keep the heat inside the machine. Rock counterbalanced door. Double spring and stainless steel hinge system. The case allows the placement of the machine under surfaces of 850 mm in height.
• Double rotating wash and rinse systems, above and below, made of stainless steel.
• Tray filters on the tank, made of AISI-304 stainless steel.
• Supplied with 1 dish rack and 1 glass rack.
• Wash pump: 600 W.
• Drain pump: 30 W. Drainage cycle.
• Tank with 2.8 kW heating element.
• Tank capacity: 20 litres.
• Boiler with multipower heating elements: 1,8 / 2,8 / 3,7 / 5,6 kW, 15Amp
• Boiler capacity: 7 litres.
• Water consumption: 2.4 litres/rinse.
• Thermostatic temperature control: washing at 60ºC and rinsing at 90ºC.
• Thermostop.
• Security thermostats.
• Built-in automatic rinse dispenser.
• Built-in detergent doser.
• Built-in non-return valve.
• Safety magnetic switch for door opening.
• Adjustable legs.
• Watermark approved
• Water protection rating: IPX4
• Total power: multipower 2,4 / 3,4 / 4,3 / 6,2 kW.
• Dimensions: 600 x 600 x 830 mm.
• Baskets equipment: 1 x CT-10, 1 x CP-16/18, and 2 cutlery containers.
• Warranty- 2 years parts & labour warranty
