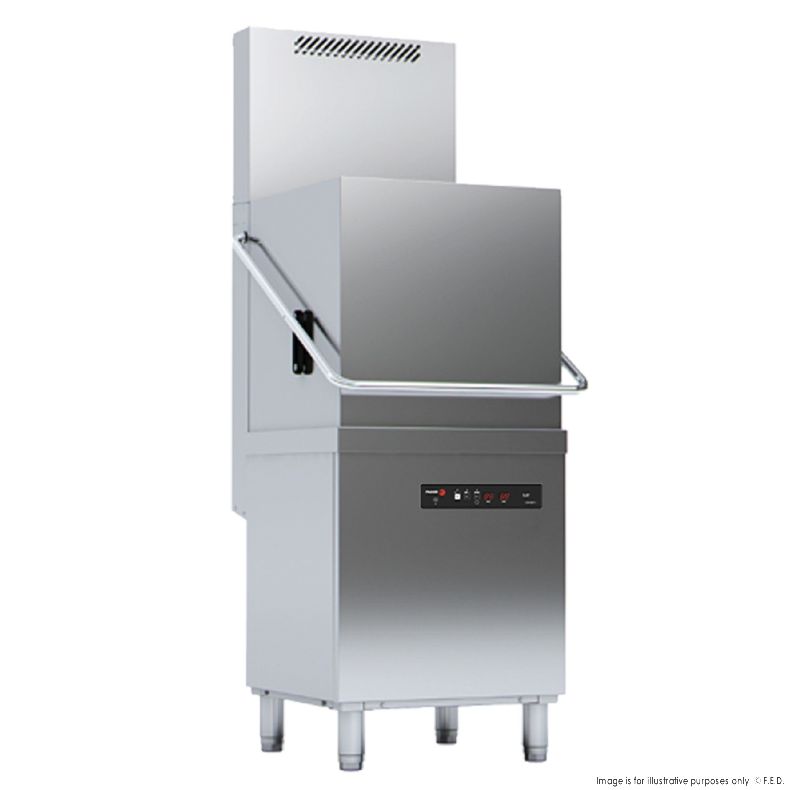

Fagor Evo-Concept Pass-Through Dishwasher CO-142HRSBDD

Product features

• Hood-type dishwashers with heat recovery system
• EVO Generation
• Constructed in stainless steel.
• Counterbalanced hood with handle and spring system.
• Stainless steel double rotating wash and rinse system, top and bottom.
• 440 mm hood opening (suitable for GN 1/1 trays).
• Continuous wash cycle.
• High water flow wash pump
• Rounded tank to facilitate washing and drainage.
• Stainless steel armoured heating elements in the wash tank and rinse boiler.
• (Optional) Multi-voltage: Allows the machine to be connected to a single-phase or three-phase voltage network.
• AISI-304 stainless steel filter trays in the wash tank.
• Thermostatic controlled temperatures (wash, 60°C, and rinse, 90°C).
• Thermal stop system which guarantees a rinse temperature of 85°C.
• Safety stop switch in hood opening.
• Safety thermostat - Machine with control panel and electronic control
• 55”, 75” and 120” wash cycles.
• Theoretical maximum production of 65 baskets/hour (1170 plates/h).
• 2.4 litre water consumption per cycle.
• Rinse with thermostop system.
• Standard factory setting disabled. Easy to enable.
• Alternating or simultaneous tank and boiler heating.
• IPX4 anti-humidity protection.
• Energy recovery device
• Drainage pump
• Tank emptying program.
• Peristaltic detergent doser.
• Equipment included: One base basket, one basket for plates and two cutlery holder
• Warranty- 2 years parts & labour warranty

Manual of Fagor Evo-Concept Pass-Through Dishwasher CO-142HRSBDD:

Brochure of Fagor Evo-Concept Pass-Through Dishwasher CO-142HRSBDD:

Exploded Diagram of Fagor Evo-Concept Pass-Through Dishwasher CO-142HRSBDD:
