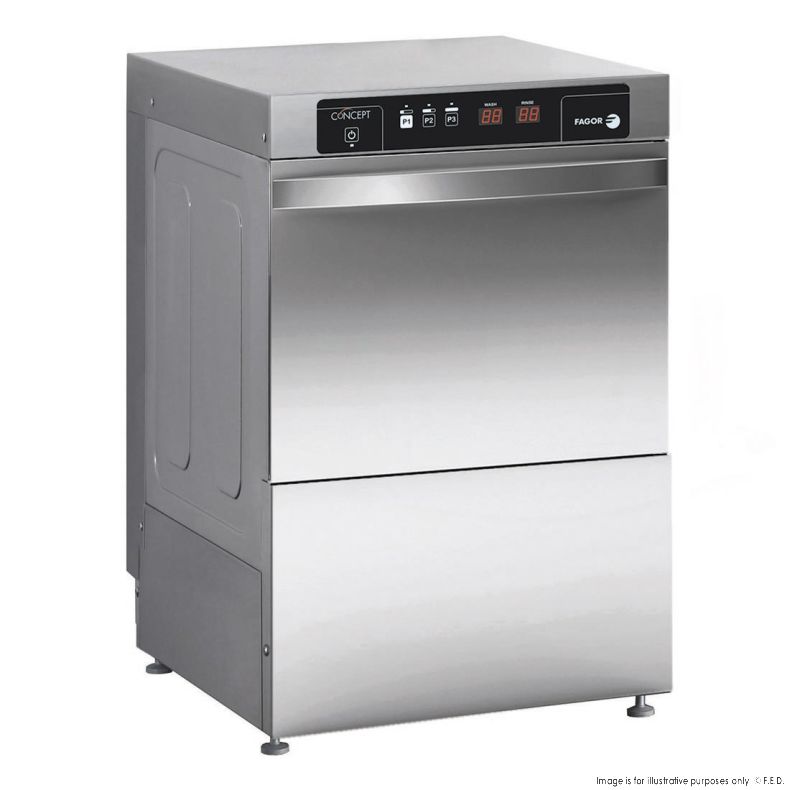

Fagor Evo-Concept Glass Washer With Drain Pump And Detergent & Rinse Dispenser Cold Rinse CO-402BDD

Glasswasher E-VO CONCEPT with double wall rigid door, 350x350 mm basket (CO-352) and 400x400 mm basket (CO-402). Up to 220 mm (CO-352) and 270 mm (CO-402) for dish service height. 2 liters of water are used constantly for the rinse at a main pressure of 2 bar per cycle. With its 0.26 kW pump and stainless steel wash arms, the newly optimized hydraulic EFFI-WASH system ensures an optimal Sinner circle balance and a high-quality, effective wash. Additionally, it features an integrated rinse aid dispenser, drainage pump (B), and detergent dispenser (DD) that can be installed at the factory or purchased as a kit. Its adjustable feet allow it to be leveled in accordance with the requirements of the establishment. Magnetic sensor for open doors. Easy-to-use electronic control panel

Product features

• Front loading glasswasher - EVO Generation - Advance range.
• Basket size: 400 x 400 mm.
• Hourly production: 40 baskets/hour .
• Clearance (max ware height): 275 mm.
• Valid for dishes Ø 270 mm.
• Wash cycles: 90" - 120" - 180".
• Electronic control. Digital displays.
• Selector for an optional cold rinse at the end of the cycle.
• Made of stainless steel.
• The door has double skin.
• Double rotating wash and rinse systems, above and below, made of stainless steel.
• Wash pump: 260 W.
• Drain pump: 30 W. Drainage cycle.
• Tank with 2.0 kW heating element.
• Tank capacity: 13 litres.
• Boiler with 2.8 kW heating element.
• Boiler capacity: 4 litres.
• Water consumption: 2.4 litres/rinse.
• Thermostatic temperature control: washing at 60 ºC and rinsing at 90 ºC.
• Security thermostats.
• Built-in automatic rinse dispenser and detergent doser.
• Built-in non-return valve.
• Safety magnetic switch for door opening.
• Adjustable legs.
• Watermark approved
• Total power: 3.06 kW.
• Dimensions: 470 x 520 x 720 mm.
• Equipment: One basket 400x400, one supplement for dishes, and one cutlery
  container.
• Warranty- 2 years parts & labour warranty
